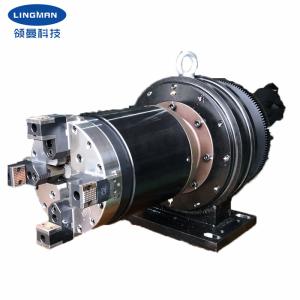

Stable Clamping Force Four-Jaw Double-Acting Laser Chuck Tube Cutting Machine
1. Description
30 workers, 5000m² workshop, 15 years experience,15 years' vendor of Chinese Chuck , ISO, CE certificated, two hour reach Shanghai port,this is how our company keep good quality and competitive prices for global valued customers.
This solid feeding chuck is specially designed for laser tube cutting equipment. The quick clamping and loosening actions can be made by air intake through the gyrator which is at the end of the chuck. Rotary air intake is achieved through the gyrator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.
This chuck can maintian its precision for a long time. As the chuck is simple in structure,so it is convenient to adjust all the parts of it. Compared to long claming claw, the stiffness of the chuck is higher and its accuracy can be maintained for a long time. There is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.
2. Performance Parameters
| | W110J |
| | 20mm |
| | 3.2KN |
| | 0.3-1.0MPa |
| | 500r/min |
| | 4-100mm |
| | 110mm |
| | 0.3kg.m² |
| | 19.8kg |
| | 30kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | J | L | M | N | O | P | Q | R | S | T |
| W110J | 200 | 110 | 102 | 237 | 110 | 85 | 165 | 106 | / | / | / | / | 17 | / | 8-M6 | 11 | 352 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
| e. Multiple configurations are available
e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
