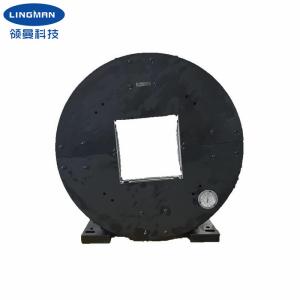

Automatic Chuck And Rotary CNC Fiber Laser Tube Cutting Machine Chuck

Brand Name : Lingman

Model Number : G800J-355

Place of Origin : Changzhou, Jiangsu, China

MOQ : 1 set

Price : USD 3600-3900/set

Payment Terms : T/T, L/C

Supply Ability : 500 sets per month

Delivery Time : 15-20 work days

Packaging Details : Wood carton

Product name : Laser Pneumatic Chuck

Claw stroke : 180mm

Allowable pressure : 0.25-0.9MPa

Limit speed : 150r/min

Maximum clamping force : 4.5KN

Central height : 420mm

Rotational inertia : 18.2kg.㎡

Clamping range : 20-350mm

Contact Now

Automatic Chuck And Rotary CNC Fiber Laser Tube Cutting Machine Chuck
1. Descripition
This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.
The axial dimension of the chuck is small, and the cost for realizing the zero tailing is lower.

2. Performance Parameters
  • Model number
 G800J-355
  • Claw stroke
 180mm
  • Maximunm clamping force
 4.5KN
  • Allowable pressure
 0.25-0.9MPa
  • Limit speed
 150r/min
  • Clamping range
 20-350mm
  • Central height
 420mm
  • Rotational inertia
 18.2Kg.m2
  • Rotating part weight
 210kg
  • Whole unit weight
 315kg


​ 3. Dimensions
Automatic Chuck And Rotary CNC Fiber Laser Tube Cutting Machine Chuck

Specifications A B B1 C D E F G H I R S
G600J-225 520 350 680 690 179 120 460 185 225 280 12-M8 18


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws



5. Production Line
Automatic Chuck And Rotary CNC Fiber Laser Tube Cutting Machine Chuck

6. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.
